15W KC Certified Wall Adapter
Professional-grade 15W wall adapter with comprehensive international certifications for reliable power delivery.
Technical Specifications
Output Mode: Constant voltage
Input Voltage: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output Range: DC5V-36V, 0.01A-3A, 24W Max
Protections: Short circuit, over current, over voltage
Energy Efficiency: DOE, CEC, ERPII MEPS GEMS
Operating Environment: 0-40℃, 5%-95% RH
Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB
Regional Specifications
| Country |
Max. Watt |
Voltage Range |
Current Range |
Safety Standard |
| US |
24W |
DC5-36V |
0.01A-3.0A |
EN62368/UL 1310 |
| EU |
24W |
DC5-36V |
0.01A-3.0A |
EN62368 |
| UK |
24W |
DC5-36V |
0.01A-3.0A |
EN62368 |
| AU |
24W |
DC5-36V |
0.01A-3.0A |
EN62368 |
| KR |
24W |
DC5-36V |
0.01A-3.0A |
EN62368 |
| JP |
24W |
DC5-36V |
0.01A-3.0A |
EN62368 |
| CN |
24W |
DC5-36V |
0.01A-3.0A |
CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020 |
Key Features
- Single channel constant voltage power supply
- 100% full load burn-in testing
- Passes LPS (limited power source) requirements
- 3-year comprehensive warranty
- Class II power design (without earth pin)

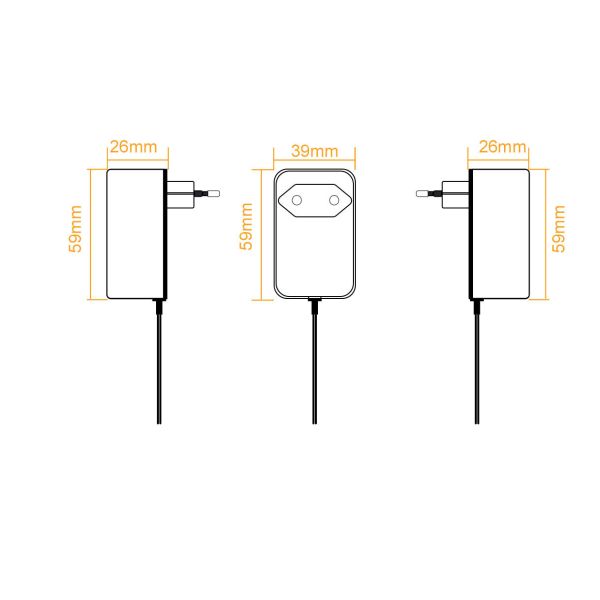

- Compact size with fully enclosed PC plastic case
- Fast startup time: <3 seconds
- High energy efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI
- Automatic safety protections for over current, over load, and short circuit
FQA
Q1: What certifications does this 15W wall adapter have?
A: KC certification together with UL, FCC, UKCA, SAA, CCC, RoHS, CB and other global certifications.
Q2: What safety protections are included?
A: Short‑circuit, over‑current, over‑voltage, overload protection. Passes LPS standard, 100% full‑load burn‑in tested.
Q3: What plugs and DC connectors are optional?
A: AC plugs for US, EU, UK, KR, JP, CN, Brazil, India etc. Multiple DC tips are available, custom connectors supported.
Q4: What are its application and working conditions?
A: For LED strips, wireless routers, audio amplifiers and other electronics. Indoor‑use only, non‑waterproof, 0‑40℃, 5%‑95% RH.
Q5: What about warranty and customization service?
A: 3‑year comprehensive warranty. OEM & ODM are available for labels, packaging and case customization.
Why choose us?
KC & Global Certifications
15W wall‑mount adapter with KC certification and full international approvals, suitable for Korea and global market sales.
2. Reliable Multi‑Safety Design
Built‑in short‑circuit, over‑current, over‑voltage and overload protection. Meets LPS requirements. Class II design without earth pin. 100% full‑load burn‑in test ensures stable performance.
3. High‑efficiency Performance
Single‑channel constant‑voltage output, compliant with Level VI energy‑efficiency standards. Fast startup within 3 seconds, compact fully‑enclosed PC plastic housing.
4. Wide Compatibility
Multiple regional AC plugs and various DC connectors optional, fit for LED strips, routers, amplifiers and more electronic devices.
5. Warranty & Custom Support
3‑year comprehensive warranty. OEM / ODM available for custom labels, packaging and case design.
Compatible AC Plugs
US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and other regional standards
Available DC Connectors
- 5.5*2.1mm
- 5.5*2.5mm
- 4.0*1.7mm
- 3.5*1.35mm
- 2.5*0.7mm
- XLR
- Other customizable options
Applications
Ideal for electric grill ovens, LED strips, audio amplifiers, wireless routers, and audio/video power supplies.
Not waterproof - indoor use only.
Customization Services
We offer comprehensive OEM and ODM services with custom labeling, packaging, and case design options available to meet your specific requirements.
